  Passive Infrared Detector
IR-580 / 580C / 580CS
  FEATURES
  Dual look down detection zones
  Built-in temperature compensation
  Excellent RFI and EMI protection
  Selectable intelligent pulse count
  NC/NO selectable alarm output
  Sealed optics mechanical design
  Double noise reduction circuit
  Second-to-none wiring space
  Disabled blue walk test LED
  Adjustable range at various height

  SPECIFICATIONS

Infrared sensor
Dual element
Power supply
9~16 VDC, 12 VDC typical
Current drain
NC: 15mA, NO: 8 mA, 12VDC
Alarm period
1.5 ~ 2.5 sec.
Alarm output
NC/NO, 30VDC, 0.2A max.
Pulse count
2 / 3 selectable
RFI immunity
Max. 40 V/m 10~1000 MHz
Tamper switch
NC, cover open activates
Walk test LED
Blue, can be disabled
Detectable speed
0.3 ~ 1.5m/sec.
Mounting height
W/o bracket: 1.8~3.0m
With bracket: 1.8~3.6m
Humidity
95% RH maximum
Temperature
-20¢XC ~ 60¢XC (-4¢XF ~ 140¢XF)
Dimensions
100 x 60 X 42 mm
Unit weight
68 grams
  The PLATO series passive infrared detector is IR-TEC's latest addition designed for today's competitive security market. The NC/NO selectable output, advanced blue LED indicator and excellent RFI/Emi protection deliver ultimate reliability and flexible versatility required by professional security systems.                                 Backed by IR-TEC's globally renowned expertise in infrared sensing technology, the PLATO series features a perfect blend of competitive edges, aesthetical appearance and trouble-free performance.

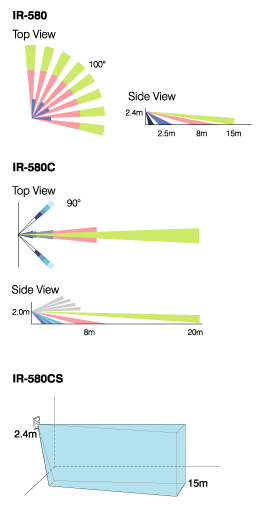

  DETECTION PATTERN   The IR-580 provides typical wide-angle detection for general application. IR-580C's 20 m long range with 90¢X detection curtain is suitable for corridor protection. IR-580CS provides single detection curtain ideal for indoor perimeter protection.
