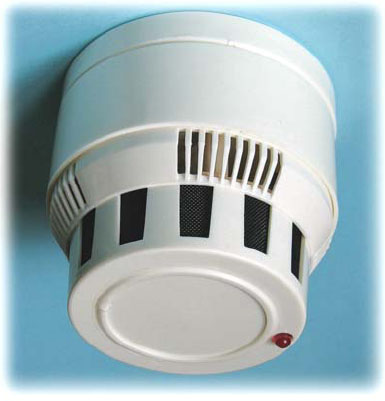

MODEL : JIC-636 SERIES

Features:

Safety is secured due to no use of radioactive substance.

Suitable for use in multiple stations or single station.

Auto restores function.

Excellent stability and high sensitivity.

High quality and small size.

Ideal for stair exits, elevators, textile warehouses and any closed rooms that store flammable articles.

CE recognized.

Meet UL217.

General specifications:

Operations:

MODEL		JIC-636AR	JIC-636B	JIC-636BR
RATING VOLTAGE		DC10~15V	DC9V BATTERY
POWER SOURCE		From Security panel	By Independent 9V battery
ACTION SIGNAL		RELAY NO/NC, DELAY 5SEC. AFTER LED ON.	---	RELAY NO/NC, DELAY 5SEC. AFTER LED ON.
SOUND PRESSURE LEVEL		---	85dB/30cm
CURRENT CONSUMPTION	STANDBY	4mA max.(DC12V)	20µA max.
	THRESHOLD	50mA max.	10mA max.		50mA max.
INDICATOR	STANDBY	LED blinking once per 22 second
	THRESHOLD	LED illuminated	L.E.D. illuminated & BUZZER sounding

Location to be avoid:

Do not locate Detector in:

	The Kitchen: Smoke from cooking might cause an unwanted alarm.
	Near Ventilating fan, Fluorescent lamp or Air-Conditioning equipment: Air grafts from them may affect the sensitivity of the detector.

	Near Ceiling beams or over Cabinet: Stagnant air in these areas may affect the sensitivity of the detector.

	In the peak of an 'A' frame type of ceiling.

DETECTION
