DEMO-ALERT
  • This is the somplest, most effective & economic, smallest device of anti-thief for any valuable, expensive products during demonstration.
  • No extra power sources (reliable lithium battery included); sockets or control center required, save a lot of the charge for complicated wiring construction.
  • With a very fine, coiled but strong tenacity wire.

CHARACTER ISTICS & INSTALLATION:

  1. Tear off the cover of the adhesive sponge on the bottom of this alert.
  2. Stick this alert on the back, the top or any side of the product which you are demonstration.
  3. Fix the wire of this alert under the demonsrating shelf.
  4. Or use the circle at the end of the wire of this alert to tie it onto anyplace on the demonstration product itself and then stick the alert on the demonstrating table, shelf, etc.
  5. When the above procedures are done, simply open the power switch on the alert by pushing down the small white bar at the right side of this alert.
  6. Now, the alert is armed when anyone wants to take it away from the demonstrating product or cut the wire, the alarm will be activated immediatedly and an over 75 decibels alarm wil go off.
  7. The alert can be disarmed by sliding the power switch back to it's original position (at the bottom of each unit) with a small screwdriver whcih usually used for watch, or ball pen.
  8. A long duration lithium battery is already installed inside of each unit, the battery can store for 10 years.
  9. The alert once activated will keep sounding for 2 hours, except disarmed.
  10. The battery is not replaceable

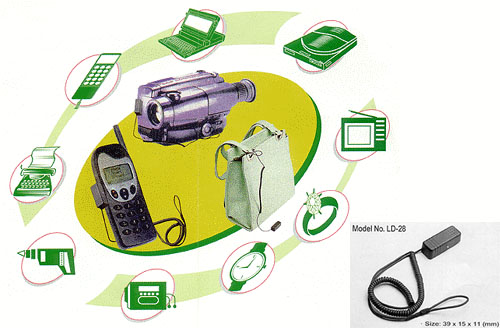

  11. This alert will be used for:



  1. Store of CD players.
  2. Store of cellular phones.
  3. Store of note-book computers.
  4. Store of fishing gears.
  5. Store of auto parts & accessories



  1. Store of video games.
  2. Store of computers.
  3. Store of leather goods.
  4. Store of watches & clocks, etc.




Specification:
  • Operating Voltage: 2V DC - 3.5 V DC
  • Power ON. Stand-by Current: 3 uA (at DC 3V)
  • Buzzer ON. Power Consumption: 26mA (at DC 3V)
  • Buzzer S.P.L. (at 30 Cm): Over 75 dB (at DC 3V)
  • Battery: 1 piece of CR1220 Lithium battery
  • Power On Stand-by Battery life: Over two years
  • Operation Temperature: -10oC Min - +60oC Max.
  • Material of Housing: ABS
  • Packing: 20 pcs./tray; 20 trays/ctn;
    N.W./G.W./Mest: 5.5 KGS./6.5 KGS./1.0
